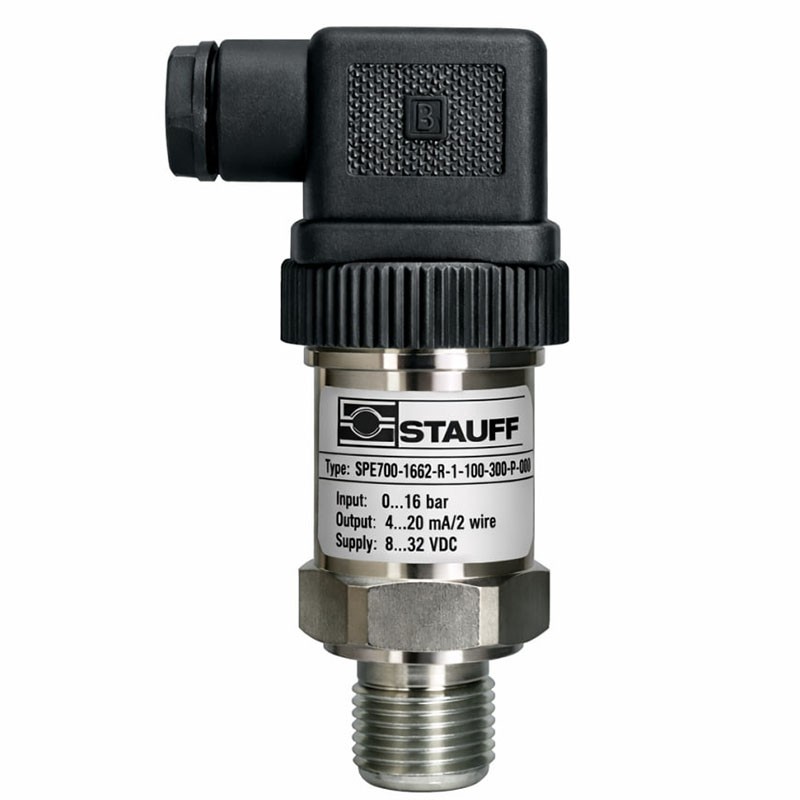

The SPE700-1602-R-1-5-100-300-P-000 pressure sensor from STAUFF is designed for accurate pressure measurement and monitoring in industrial hydraulic systems. It features a high-precision sensing element and stable signal output, ensuring reliable performance even under high-pressure and demanding conditions.
This model provides excellent resistance to interference and long-term operational stability, making it ideal for automation and fluid control applications.
Key Features
- High accuracy with fast response
- Stable output with strong interference resistance
- Compact design for easy installation
- High-pressure resistance for demanding environments
- Reliable long-term performance
Specifications
| Model | Pressure Range | Output Signal | Electrical Connection | Process Connection | Accuracy | Measuring Medium |
|---|---|---|---|---|---|---|
| SPE700-1602-R-1-5-100-300-P-000 | 0–300 bar | 4–20 mA (typical) | Plug connection | G1/4 (standard) | ±0.5% FS (typical) | Hydraulic oil, water, non-corrosive fluids |
Applications
- Hydraulic pressure monitoring
- Industrial automation systems
- Fluid control systems
- Energy and oil & gas equipment
- Construction machinery
Condition & Supply
- Condition: Brand new original
- Price: On request
- Supply: Single unit
